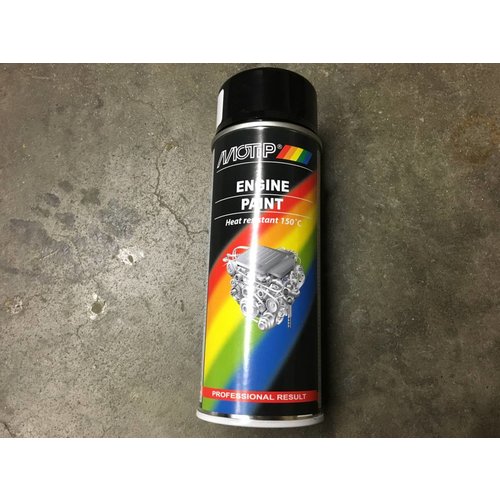

MoTip Machine Paint can be used to coat engine blocks and other parts that have been exposed to strong vibrations and heat stress (up 110°C). The lacquer coating retains the required level of elasticity.
QUALITY AND PROPERTIES
Good filling power
Long-lasting high gloss
Elastic, resistant to change in temperature
Scratch and shockproof
Good protection against corrosion
PHYSICAL AND CHEMICAL DATA
Basis of the binder: alkyd resin
Degree of gloss (at measurement angle 60° acc. to DIN 67530):
glossy: 90 glossy units
Depending on consistence and colour of the ground:
400 ml are sufficient for approx. 1.25 - 1.75 m²
Drying time (at 20°C, 50% relative air humidity):
Dust-dry: after approx. 30-60 minutes
Tack-free: after approx. 3 hours
Coatable: after approx. 24 hours
The drying time depends on surrounding temperature, air humidity and thickness of the applied coat.
Temperature-resistant: up to 110°C
Maximum load: up to 150°C
10 years if appropriate storage provided (=10°-25°C, relative air humidity of max. 60%)
aerosol can, maximum nominal volume 400 ml
ENVIRONMENT AND LABELLING
Environmentally sound: The products of MOTIP DUPLI are 100% free of heavy metals. The caps and packagings are made of recyclable material.
Disposal: Only the completely emptied cans should be put into the recycling skip or appropriate container for reclaimable refuse. Cans which are not empty should be disposed off as "special refuse".
Marking/Labelling: All products made by MOTIP DUPLI comply with the actual labelling regulations according to Preparation Guideline 1999/45/EG. All aerosols correspond to TRGS 200 and TRG 300 as well as to aerosol guideline 75/324/EWG in the actually valid version.
Before use, carefully read and observe the warning texts on the label!
Remove rust and dirt.
Surface should be clean, dry and free of grease.
Cover area not to be treated with masking tape.
Shake can for 2 minutes before use.
Spray to test compatibility on an inconspicuous area.
Spray several thin coats crosswise from a distance of ca. 25-30 cm.
Do not spray on surfaces coated with synthetic resin!
TIPS FOR SPRAY PAINTING
Protect the object and the surrounding area from spray mist. When painting small areas it is recommended that a piece of card is used as a mask, with a hole cut in it slightly larger than the area to be sprayed. The mask should be held 1 to 2 cm from the surface. With this method, the mainly part of the spray mist is brought under control. It recommends to mask parts not to be lacquered, to protect the surrounding against the spray mist.
The aerosol can should have room temperature.
Temperature should range between +10°C and +25°C, max. air humidity 60 %.
Store in a dry place. Protect from direct sunlight and other sources of heat. Use only during dry weather, in places protected from the wind, and in well-ventilated rooms. Follow the warning texts on the labels!
